NiTi Perio Saw®
for clear & smooth extraction
A flexible, micro-serrated ligament saw with a super-elastic nickel-titanium (NiTi) blade. It cuts the periodontal ligament (PDL) around the root with controlled movement, so the tooth can be extracted with minimal force — saving the surrounding bone.
Why a saw, not a plain blade
A conventional ligament-cutting instrument has a plain blade. The NiTi Perio Saw® has a micro-serrated one.

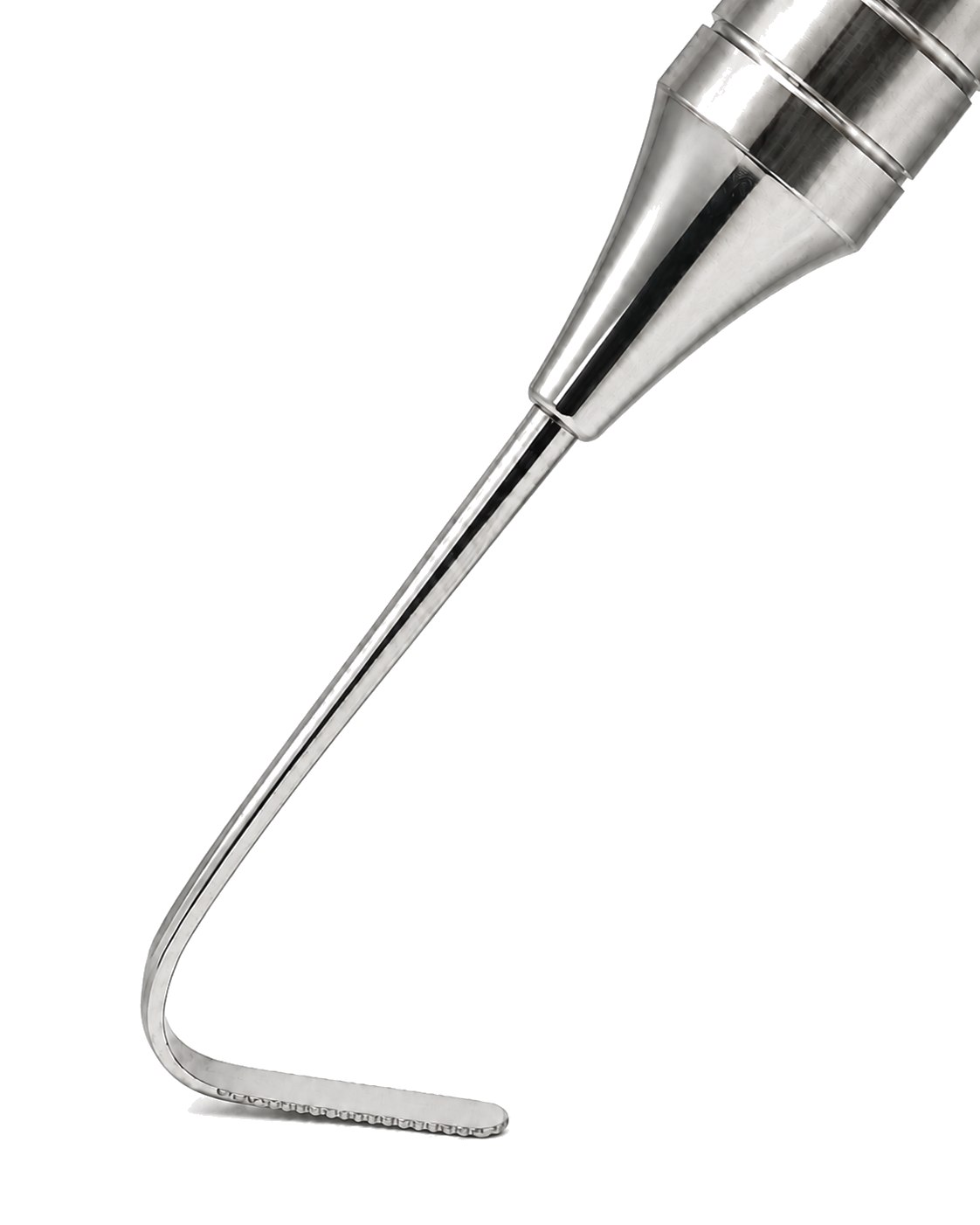

Micro serration tip
A micro saw on the blade edge cuts the periodontal ligament clearly instead of tearing it.
Super-elastic NiTi
The tip bends up to 180° and springs back straight, following the curvature of the root.
Save the surrounding bone
Atraumatic, tissue-preserving PDL cutting for a clear extraction.
Controlled entry
The serration prevents slipping and gives precise directional entry into the ligament space.
“NiTi Perio Saw with micro serration” cuts the periodontal ligaments clearly.
A hand instrument — no motor, no handpiece. Push and draw gently in short strokes to cut the ligament around the root, with full tactile control.
See it in action
Animation of the NiTi Perio Saw cutting the periodontal ligament (1 min 22 s).
Four tips, chosen by tooth position
Tip width 2 mm. Available individually or as a set of four.

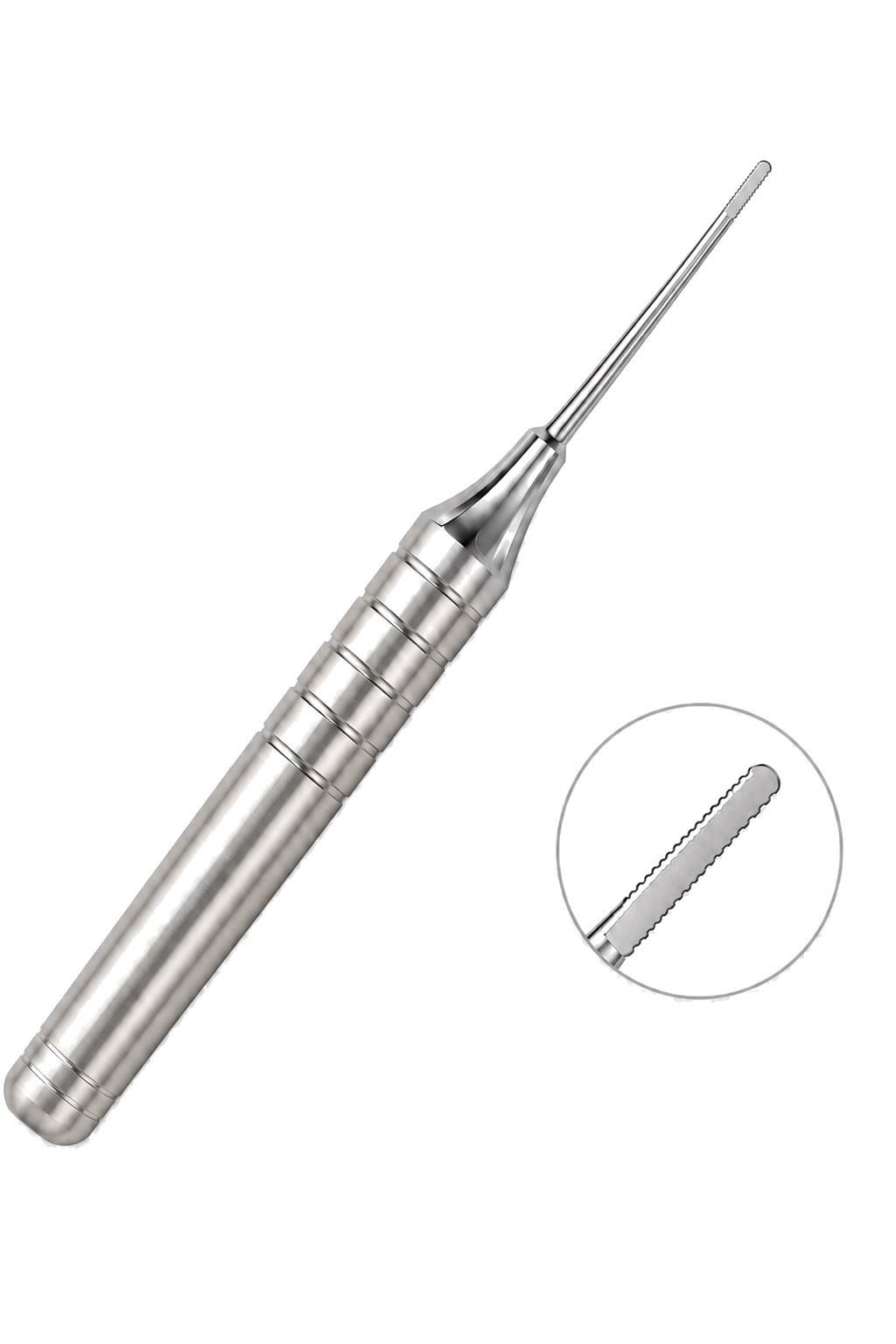

Straight tip
For anterior teeth
NiTi Periosaw-ST-02

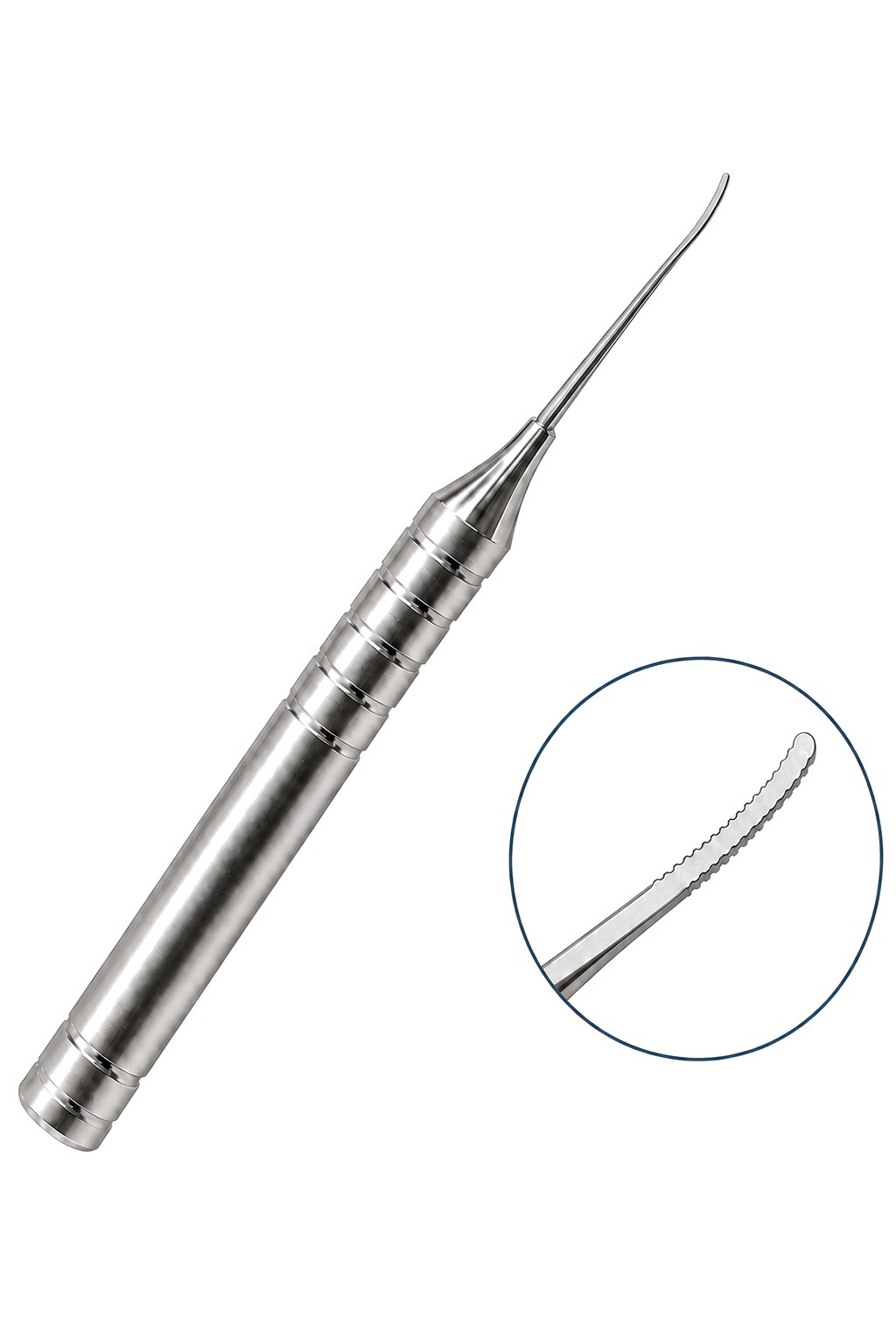

Curved tip
For canine or premolar
NiTi Periosaw-CD-02

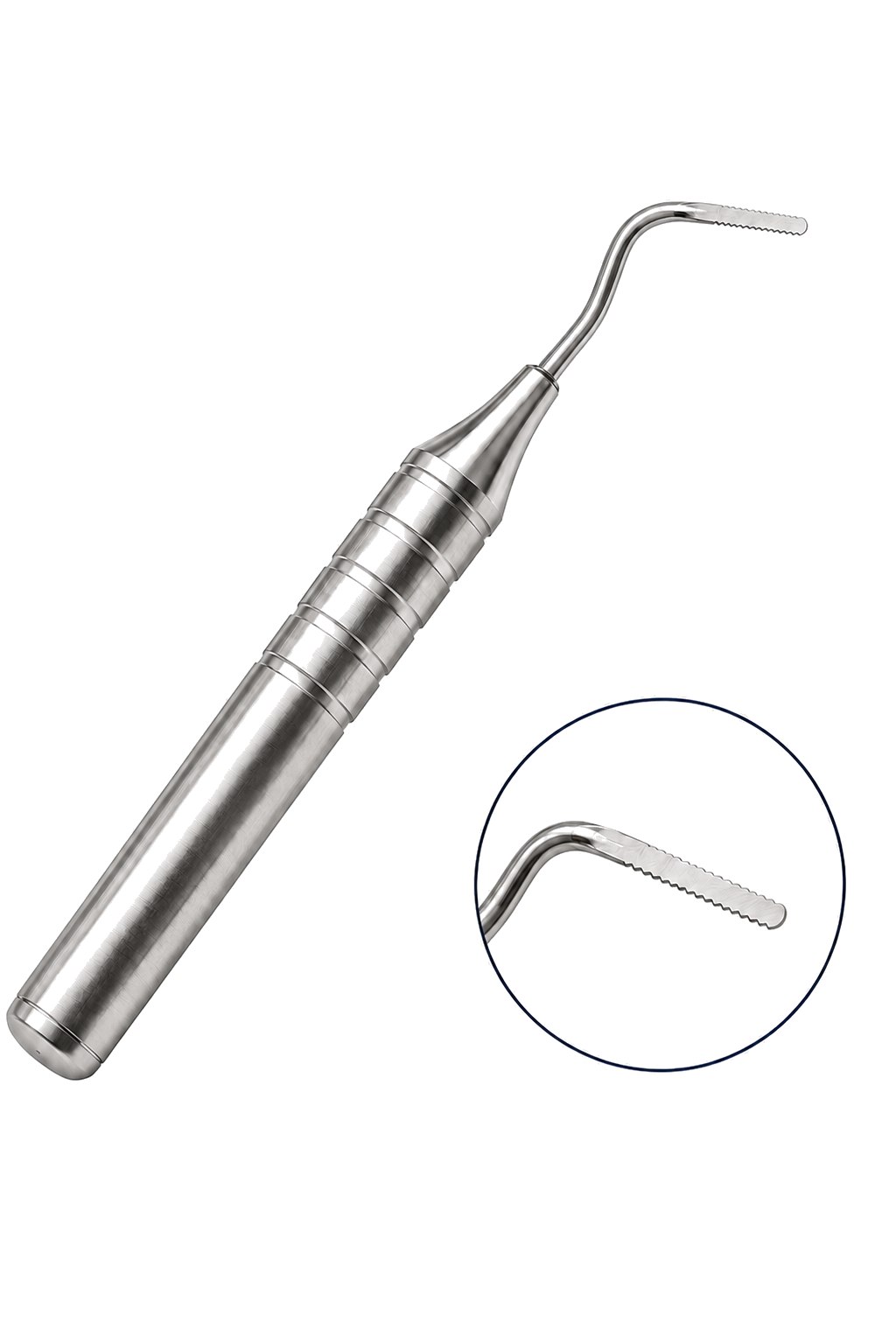

Angled tip
For mesial and distal
NiTi Periosaw-AD-02

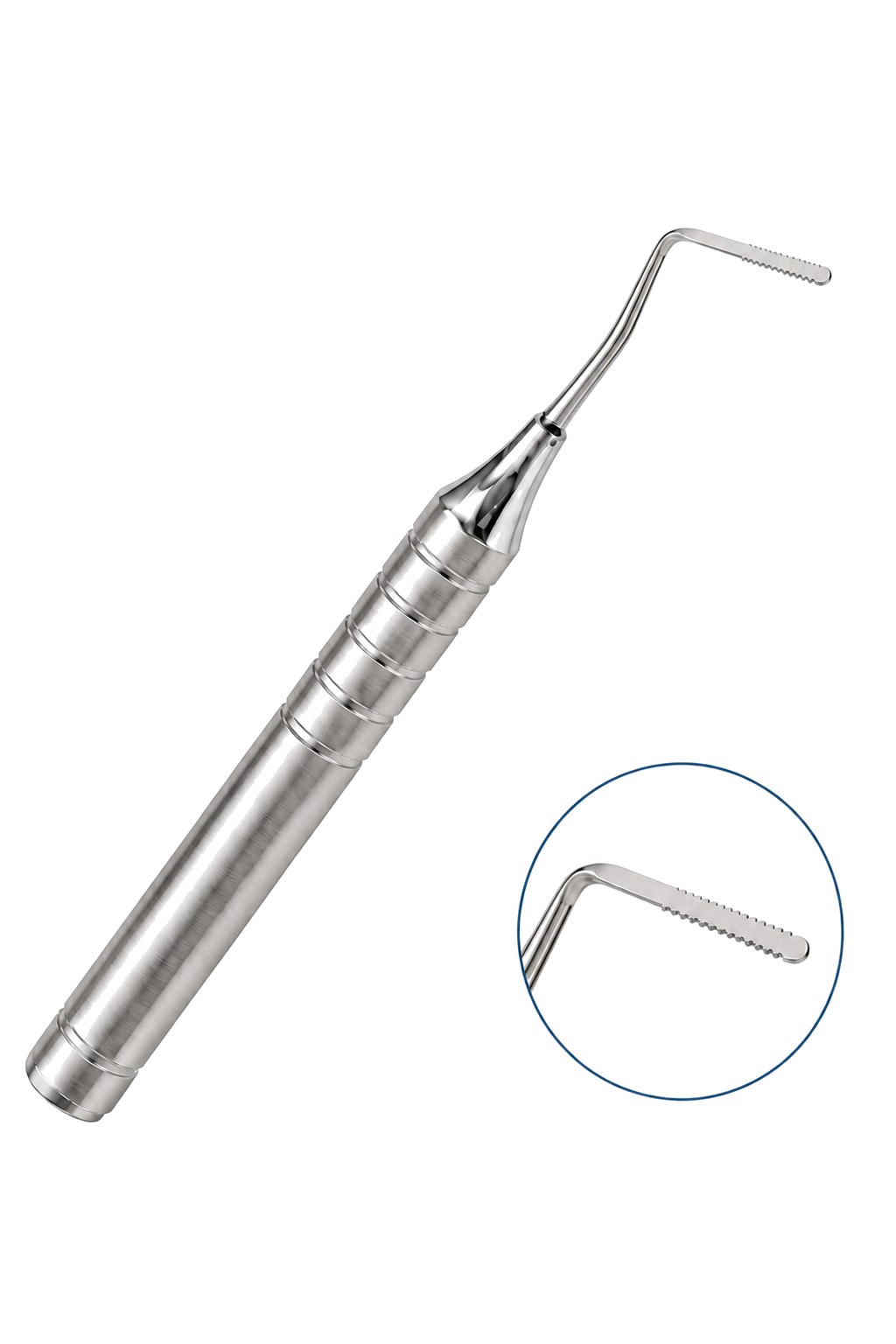

Flat angled tip
For interproximal

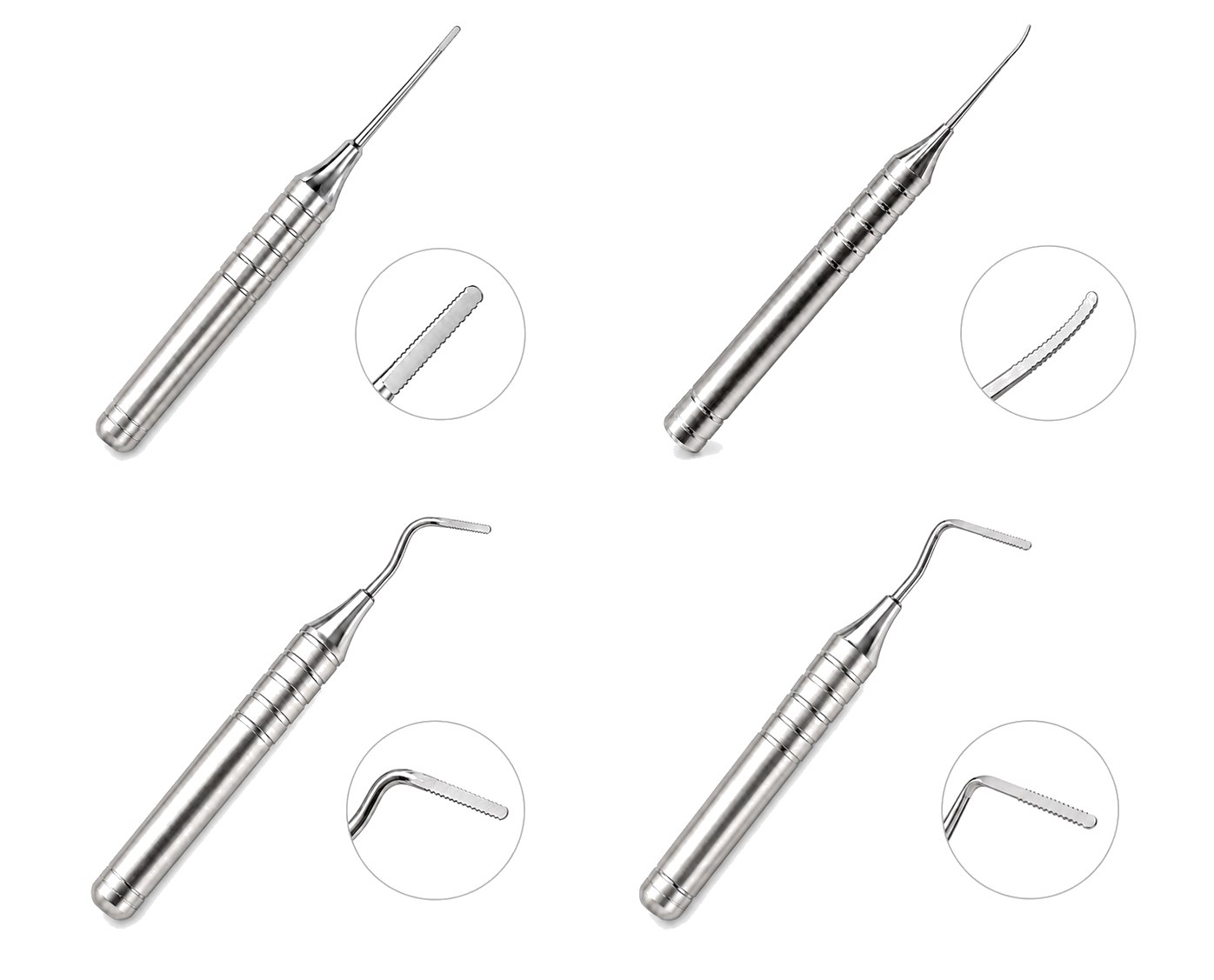

NiTi Periosaw-FA-02Need all four? See the NiTi Perio Saw® set of 4 →
How to use
Summary of the instructions for use. Read the full instructions for use (PDF) supplied with the product.
- Inspect the Perio Saw for damage, deformation or foreign material.
- Pack it in a sterilisation pouch and autoclave: 134 °C, 15 min, dry 20 min.
- Position the tip at the tooth, in the ligament space along the root.
- Push and draw back gently to cut the periodontal ligament around the root.
- With the ligament cut, the tooth becomes mobile for a clear extraction.
- Do not twist the Perio Saw.
- Do not use on an ankylosed tooth.
- Do not use it to elevate the root.
- Do not use if damaged, bent or contaminated.
- Do not use on animals with known reactions to nickel or titanium.
| Material | Tip: nickel-titanium shape-memory alloy (ASTM F2063) · Handle: stainless steel SUS304 (ASTM A276) |
|---|---|
| Dimensions | Handle 100 mm · working tip 36 mm (Straight, Curved) or 42 mm (Angled, Flat angled) |
| Supplied | Non-sterile, reusable |
| Sterilisation | Autoclave, wrapped, 134 °C, 15 min, dry 20 min |
| Tips | Straight, Curved, Angled, Flat angled · width 2 mm |
| Storage | 15–30 °C, dry, away from sunlight |
| Manufacturer | HANS Korea Co., Ltd., Paju, Republic of Korea |
| Regulatory (Korea) | Class 1 medical device, MFDS notification no. 21-813, valid to 2 June 2031 |
Made to medical-device standards. In the Republic of Korea, the same instrument is a notified Class 1 medical device used in dental extraction (MFDS notification no. 21-813). In the EU, this shop offers it for veterinary use only.
Professional sales only. This shop accepts orders from veterinarians and veterinary clinics. The NiTi Perio Saw is intended for veterinary use only and is not for human use. It is not a CE-marked medical device.
See all Perio Saw productsGuides
Short, sourced summaries for the surgical team: where a ligament saw fits in an extraction, how it compares with elevators, and how to choose and care for the tips.
Choosing and caring for NiTi Perio Saw® tips
Which NiTi Perio Saw® tip for which tooth position, model codes, and how to inspect, clean, autoclave and store the instrument – from the instructions for use.
Cutting the periodontal ligament in dog and cat extractions: where a ligament saw fits
Where periodontal ligament cutting fits in closed and open extractions in dogs and cats, the least-traumatic sequence, and when a ligament saw is the wrong tool.
Elevator, luxating elevator or NiTi Perio Saw®: what each instrument does to the periodontal ligament
How elevators, luxating elevators and the NiTi Perio Saw® differ in blade, motion and effect on the periodontal ligament in human and veterinary extraction.
Frequently asked questions
What is the NiTi Perio Saw?
A hand-held ligament saw with a micro-serrated nickel-titanium blade. It cuts the periodontal ligament (PDL) around the root so that the tooth can be extracted with less force. It can also be used in veterinary dentistry; this shop sells the veterinary version.
How is it different from a plain-blade instrument?
A plain blade pushes and tears the ligament. The NiTi Perio Saw® has micro serration on the blade edge, which prevents slipping, gives precise directional entry into the ligament space and cuts the ligament clearly.
Which tip should I choose?
Straight for anterior teeth, Curved for canine or premolar, Angled for mesial and distal, and Flat angled for interproximal. Each has a 2 mm tip and is available individually or as a set of four.
Is it reusable and how is it sterilised?
Yes. It is supplied non-sterile and is reusable. Autoclave it wrapped at 134 °C for 15 minutes and dry for 20 minutes.
Who can buy it?
This shop sells only to veterinarians and veterinary clinics, in the EU, the United States and other markets shown at checkout. The NiTi Perio Saw is for veterinary use only and is not for human use. Dentists: see NiTi Perio Saw® for human dentistry.
Who makes the NiTi Perio Saw®?
HANS Korea Co., Ltd. in Paju, Republic of Korea, designs and manufactures the NiTi Perio Saw® (also written NiTi PerioSaw). Perio Saw® is a registered EU trade mark of HANS Korea (EUTM No. 018462350). periosaw.com is the manufacturer's own shop for veterinarians and veterinary clinics; the instrument is also available through authorised distributors.
How does the NiTi Perio Saw® differ from a luxator or an elevator?
All of them work in the periodontal ligament space. An elevator has a thicker blade and is rotated to fatigue and tear the ligament. A luxating elevator has a thinner, sharper blade that cuts it. The NiTi Perio Saw® is the thinnest: a flexible, micro-serrated nickel-titanium blade that saws through the ligament along the root instead of tearing it.
Can the NiTi Perio Saw® be used to lever or elevate the root?
No. According to the instructions for use, it is pushed and drawn back gently in the ligament space to cut the periodontal ligament around the root, and the tooth is then extracted with minimal force. Do not twist it and do not use it to elevate the root.
Can it be used on an ankylosed tooth?
No. The instructions for use exclude ankylosed teeth. Where the periodontal ligament space is not visible on radiographs, there is no ligament for the saw to cut.
How much does it cost?
€100 for a single tip (Straight, Curved, Angled or Flat angled) and €300 for the set of four. Shipping is €19 per order (Australia and other regions €29) and free from €300; any import VAT or duties are payable on delivery. Orders are accepted from veterinarians and veterinary clinics only.
Where do you ship from, and can I return an item?
Orders ship from HANS Korea in the Republic of Korea to the EU, the United States and the other destinations shown at checkout, with a tracking number. Report defective or wrong goods within 7 days of receipt. Unused items in unopened packaging may be accepted within 14 days as a courtesy. Used or sterilised instruments cannot be returned unless defective.
